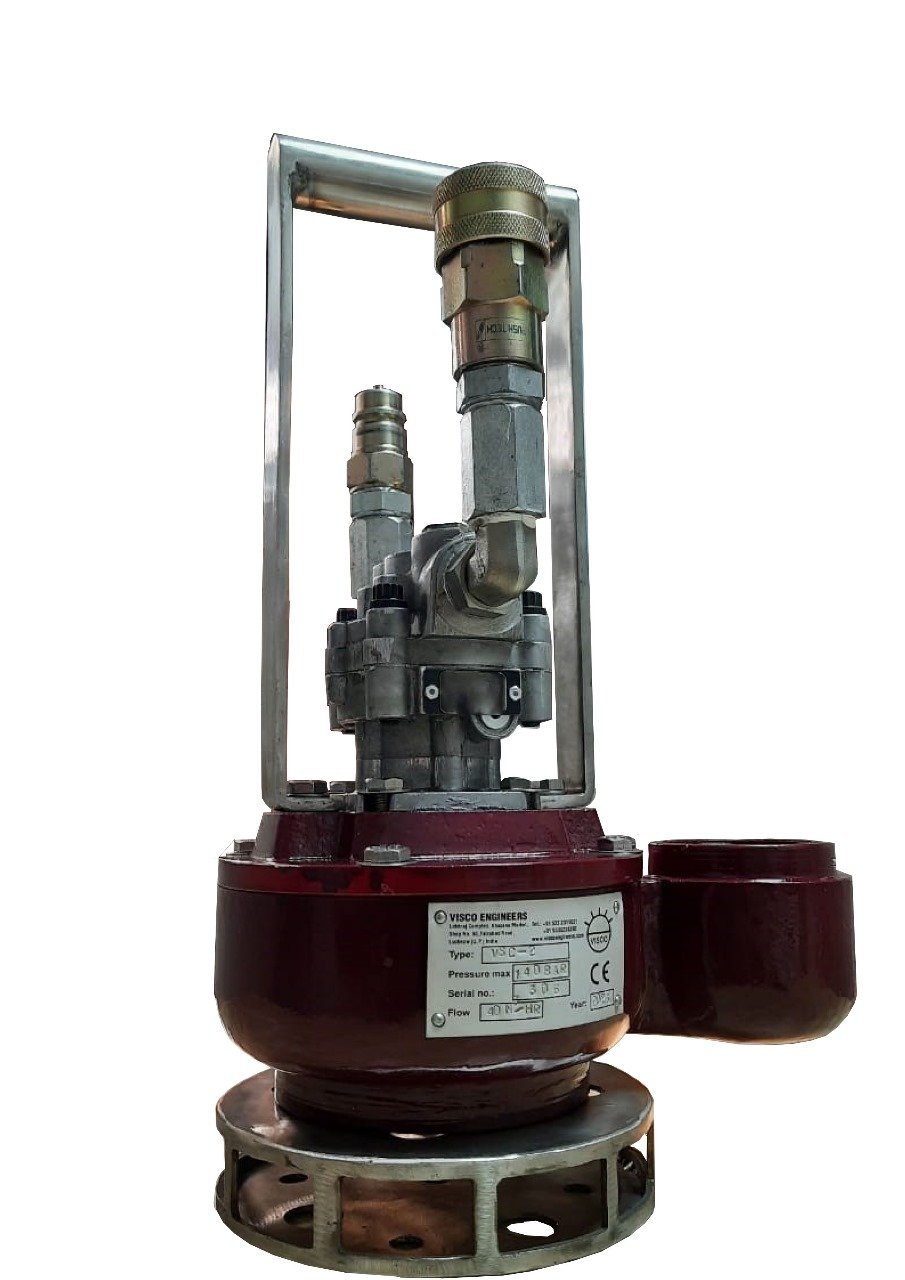

Hydraulic Submersible Pump
Visco Engineers is a globely recognised name in manufacturing and supplying of Hydraulic Driven Submersible Pump. VISCO’S Hydraulic Submersible Pumps are self priming with high power-to-weight ratio. Being hydraulically driven, they are self lubricating and maintenance free and will run dry without damage. Applications include portable firefighting, mine and deepwell de-watering, barge and ship cargo pumping, tank stripping, irrigation, piling and dock jetting, and in-line booster pumping,oil transfer,hyzardus oil pumping, use in fire zone.
VISCO’s Hydraulic Driven Submersible Pumps are available in trash, axial flow and materials handling models. The pumps range from 2″,3″ and 4″ discharge with a variety of impeller designs like fully VORTEX Impeller and Centrifugal Screw Impeller. These pumps are designed for handling high volumes of liquids and head conditions up to 28 meter. The impellers can handle solids up to 3″. Some models may also be used for high pressure applications.
We present our three models in this range (VSC2�, VSC3� and VSC4�). The specification are given below-
The VSC2″ is highly efficient water pump for use where small size, light weight, yet high performance pumping is required.
Specification –
Discharge Size: 2″ NPT(F)
Maximum Flow: 45m3/hour
Maximum Head: 28 Meter
Hydraulic Input: 20-30 LPM)
Hydraulic Pressure: 90 – 140 Bar)
Weight: 8Kg (Aluminum)
Max Solid Size: �25mm
HOSE PORTS: �� QRC
PUMP BODY: Heat Treated Aluminum
IMPELLER: CS
SHAFT: Stainless Steel
SHAFT SEAL: Carbon / Ceramic (Std)
ELASTOMERS: Buna N (Std)
HYDRAULIC OIL: SAE 10W or 20W Type AW
also:..Dexron ATF or Bio-degradeable Oil
POWER SOURCE: Any Open Center Hydraulic System
The VSC4″ is highly efficient water pump for use where small size, light weight, yet high performance pumping is required.
Specification –
Discharge Size: 4″ NPT(F)
Maximum Flow: 202m3/hour
Maximum Head: 14 Meter
Hydraulic Input: 30-45 LPM)
Hydraulic Pressure: 120 – 150 Bar)
Weight: 28Kg (Aluminum)
Max Solid Size: �70mm
HOSE PORTS: �� QRC
PUMP BODY: Heat Treated Aluminum
IMPELLER: CS
SHAFT: Stainless Steel
SHAFT SEAL: Carbon / Ceramic (Std)
ELASTOMERS: Buna N (Std)
HYDRAULIC OIL: SAE 10W or 20W Type AW
also:..Dexron ATF or Bio-degradeable Oil
POWER SOURCE: Any Open Center Hydraulic System
The VSC3″ is highly efficient water pump for use where small size, light weight, yet high performance pumping is required.
Specification –
Discharge Size: 3″ NPT(F)
Maximum Flow: 80m3/hour
Maximum Head: 22 Meter
Hydraulic Input: 20-30 LPM)
Hydraulic Pressure: 120 – 140 Bar)
Weight: 12Kg (Aluminum)
Max Solid Size: �55mm
HOSE PORTS: �� QRC
PUMP BODY: Heat Treated Aluminum
IMPELLER: CS
SHAFT: Stainless Steel
SHAFT SEAL: Carbon / Ceramic (Std)
ELASTOMERS: Buna N (Std)
HYDRAULIC OIL: SAE 10W or 20W Type AW
also:..Dexron ATF or Bio-degradeable Oil
POWER SOURCE: Any Open Center Hydraulic System
